Corrugated Roofing Sheets
The classic wave profile on a 55% aluminium-zinc coated steel base, pre-painted in controlled factory conditions for an extremely long life.
- 762 mmEffective cover width
- 865 mmOverall sheet width
- 55%Al-Zn protective alloy
- 16+Colours available
Colour:
Prefer to talk? Call our hotline +255 792 312 166 or visit one of our 8 branches.
A timeless profile, built to last
Dragon corrugated roofing sheets have a protective coating of 55% aluminium-zinc alloy on a carbon-steel base, pre-painted in controlled factory conditions. The aluminium-zinc coated base gives an extremely long life.
The profile is available in more than 16 colours, which makes it a popular choice for architects and designers who care about style as much as durability. Sheets are made to your required lengths, so there are fewer joints, less chance of leaks and less wastage.
Uses
Corrugated sheets are used on homes, farm buildings, schools, stores and boundary walls throughout Tanzania. Matching accessories give a complete roofing solution.
- Homes
- Farm buildings
- Schools
- Stores
- Boundary walls

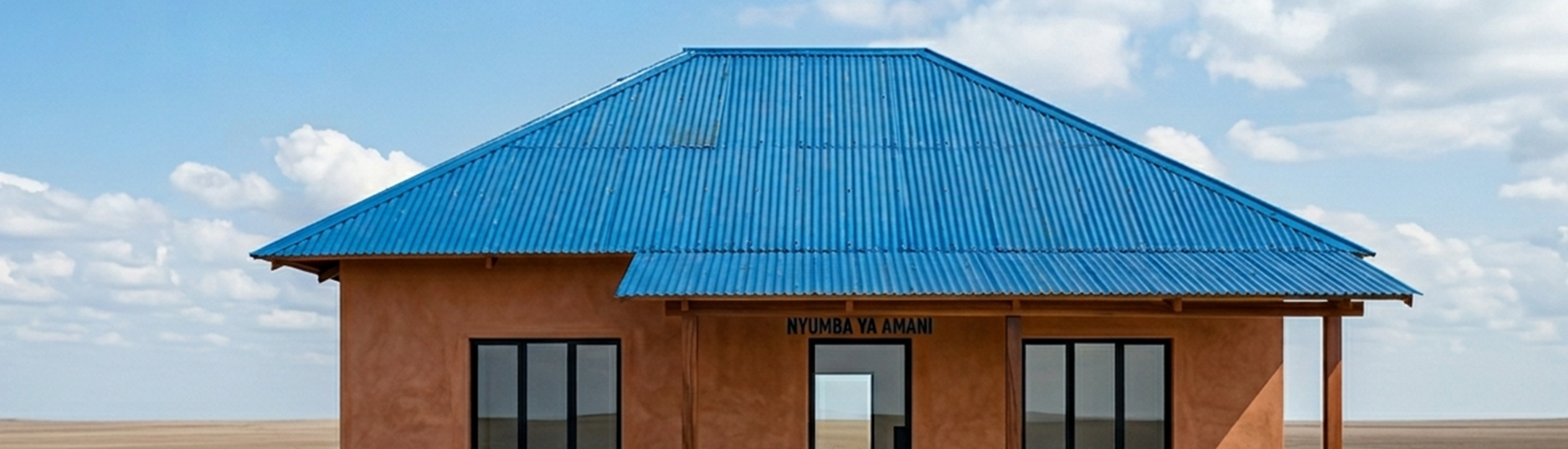

Corrugated roofing at work
Proven, good-value roofing for homes, farms, stores and industrial buildings.
Corrugated: the proven classic
A light wave profile that is quick to fix, easy to transport and good value for homes, farms and stores.
Corrugated specifications
Profile dimensions are taken from our 2026 brochure.
Corrugated Roofing Sheets
Technical specifications| Profile | Corrugated (wave) |
|---|---|
| Effective cover width | 762 mm |
| Overall width | 865 mm |
| Wave pitch | 76.2 mm |
| Wave depth | 18 mm |
| Base | Carbon steel, 55% aluminium-zinc coated |
| Paint coating | Regular modified polyester |
| Paint thickness (top) | > 20 µm |
| Paint thickness (bottom) | > 7 µm |
| Thickness range | 30G28G26G24G |
| Sheet length | Cut to order, 1 m – 12 m |
Profile drawing
Corrugated cross-section (not to scale)Choose your colour
Why choose Corrugated
55% aluminium-zinc
Extra corrosion resistance. Our brochure rates it to last about twice as long as ordinary colour-coated sheets.
16+ colours
A wide colour choice for architects, designers and homeowners.
Made to your lengths
Fewer joints, less chance of leaks and less wastage.
Matching accessories
A complete roofing solution with ridges and valleys.
Specifications, quotes and branches
Download the full 2026 brochure, ask for a quotation on WhatsApp, or visit a branch near you.
Questions about Corrugated Roofing Sheets
What is the cover width of corrugated roofing sheets?
Dragon corrugated sheets have an effective cover width of 762 mm and an overall width of 865 mm, with a 76.2 mm wave pitch.
What coating do corrugated sheets have?
A 55% aluminium-zinc protective alloy on a carbon-steel base, pre-painted in controlled factory conditions.
How many colours are available?
Corrugated is available in more than 16 colours. Our six standard colours are shown on this page.
How do I order corrugated sheets?
Tap Buy now to order on WhatsApp, call +255 792 312 166, or visit a branch.
